China SF Series Gold Copper Lead And Zinc Ore Flotation Machine , Zinc Processing Plant
Flotation Machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing,scavenging, selection or reverse flotation.In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
Working principle
Flotation Machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing,scavenging, selection or reverse flotation.In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
Product advantages
1. Large air-absorption capacity and low energy consumption
2. Optimistic structure design & Excellent performance
3. Reasonable circulation of mineral slurry
4. Automatic control Easy to adjust
Specifications
| Model | volume
(m3) | processing power
(m3/min) | impeller diameter
(mm) | impeller speed
(r/min) | main motor power
(kW) | Scraper motor power (kW) | tank weight
(T/slot) |
| SF0.37 | 0.37 | 0.2-0.4 | 300 | 442 | 1.5 | 1.1 | 0.45 |
| SF0.7 | 0.7 | 0.3-1 | 350 | 400 | 3 | 1.1 | 0.9 |
| SF1.2 | 1.2 | 0.6-1.2 | 450 | 312 | 5.5 | 1.1 | 1.4 |
| SF2.8 | 2.8 | 1.5-3.5 | 550 | 268 | 11 | 1.1 | 2.2 |
| SF4 | 4 | 2-4 | 650 | 235 | 15 | 1.5 | 2.6 |
| SF8 | 8 | 4-8 | 760 | 191 | 30 | 1.5 | 4.3 |
| SF16 | 16 | 5-16 | 850 | 190 | 45 | 1.5 | 7.4 |
| SF20 | 20 | 5-20 | 730 | 186 | 30*2 | 1.5 | 9.8 |
Product Tags:
|
|

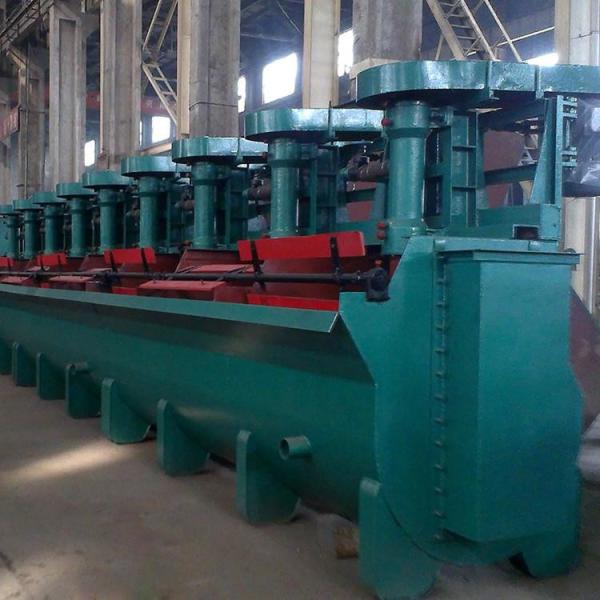

Zinc Ore SF Series Mechanical Flotation Cell Images
|
